Description

Overview

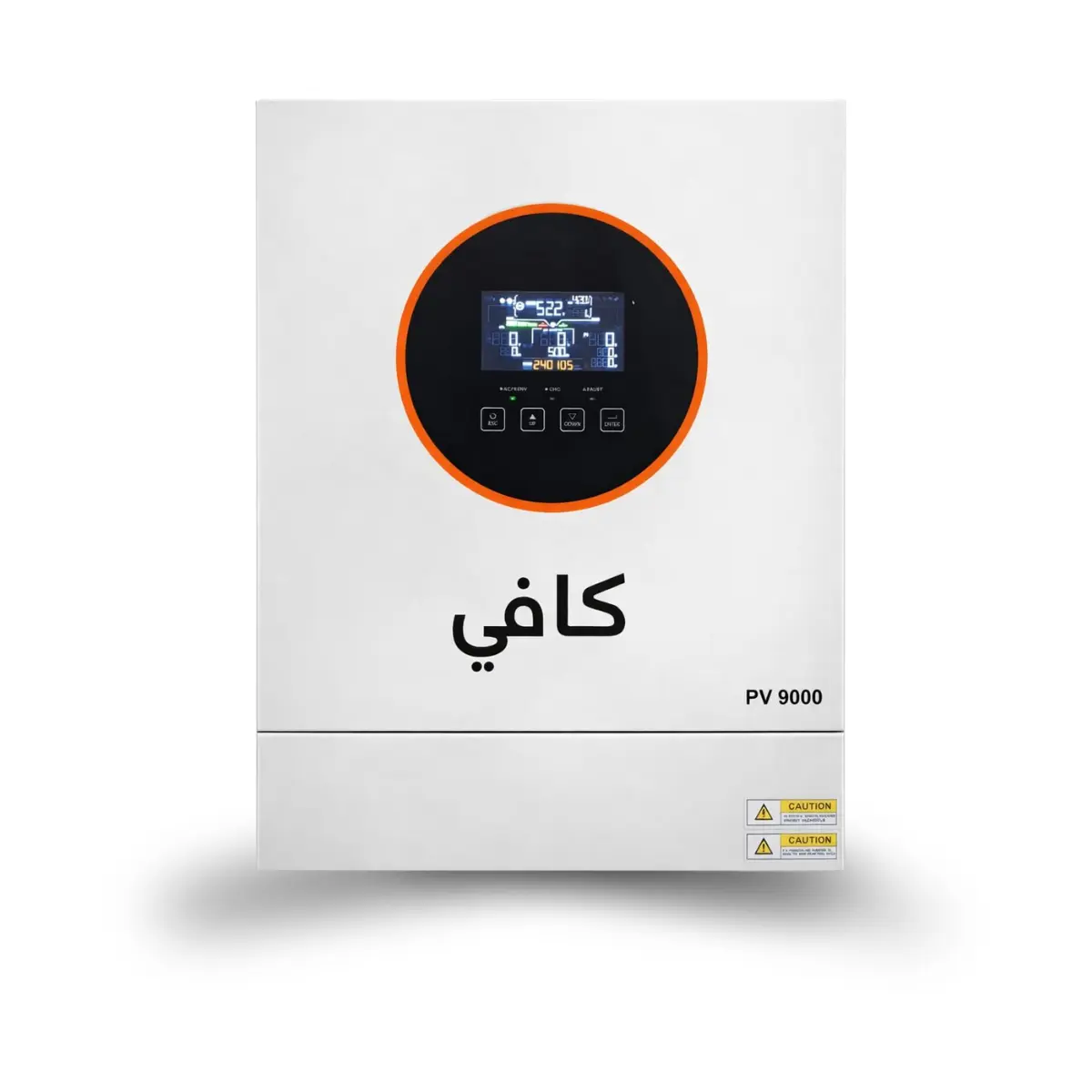

The KAFI 6KW IP21 Hybrid Inverter is a sophisticated energy solution designed for homeowners seeking total energy independence. By combining a 6000W output with a robust 9000W PV input and dual MPPT technology, it ensures maximum solar conversion even in fluctuating light conditions. This inverter is the perfect centerpiece for modern residential systems, offering seamless switching between solar, battery, and grid power.

Key Features

• 6KW Pure Sine Wave output for clean, stable power delivery
• Dual MPPT trackers (15A × 2) for optimized solar energy harvesting
• Massive 9000W PV input capacity to maximize renewable energy usage
• Advanced compatibility with both Lithium (LiFePO₄) and Lead-acid batteries
• Intelligent dual output for smart load distribution and management
• Built-in BMS communication for enhanced battery safety and longevity
• Anti-backflow CT function for advanced grid interaction control
• Optional WiFi and Bluetooth monitoring for real-time data access

Technical Specifications

System Overview

Solar & Battery System

Physical & Environment

Performance Details

The KAFI 6KW model is designed for high-performance efficiency, peaking at 93%. With a massive surge power capacity of 12000VA, it is more than capable of handling the high-torque startup requirements of motors, compressors, and large home appliances. Its dual MPPT system ensures that even if one solar string is partially shaded, the other continues to harvest energy at peak efficiency.

Battery & Charging Information

Supporting a wide range of storage options, this inverter is compatible with modern Lithium and traditional Lead-acid battery banks. The 48V system supports a combined maximum charging current of 120A, allowing for rapid recharge cycles. Integrated BMS communication ensures that your lithium batteries remain balanced and protected against overcharging or deep discharge.

Physical Specifications

At 12.5kg, the K-6KW provides a robust yet manageable footprint for indoor wall-mount installations. The IP21 rating provides necessary protection for domestic environments, while the built-in low-noise cooling system ensures the unit remains discreet while operating under heavy loads.

Connectivity & Smart Features

• Comprehensive connectivity suite: USB, RS232, CAN, and RS485
• Optional WiFi and Bluetooth for mobile monitoring and control
• CT anti-backflow function to prevent excess power from feeding the grid
• Smart load management for prioritizing critical household circuits

Environmental Conditions

Engineered to perform in diverse climates, the inverter operates efficiently between -10°C and 50°C. It is designed to handle altitudes up to 2000m without derating, making it a versatile choice for both coastal and mountainous regions.

Why Choose Kafi?

KAFI Power is dedicated to delivering scalable and intelligent energy solutions. The 6KW hybrid model represents a perfect balance of power and smart technology, providing residential users with the flexibility to grow their solar array up to 9000W while maintaining granular control over their energy consumption.
